    TZS table-type rotary shot blasting machines

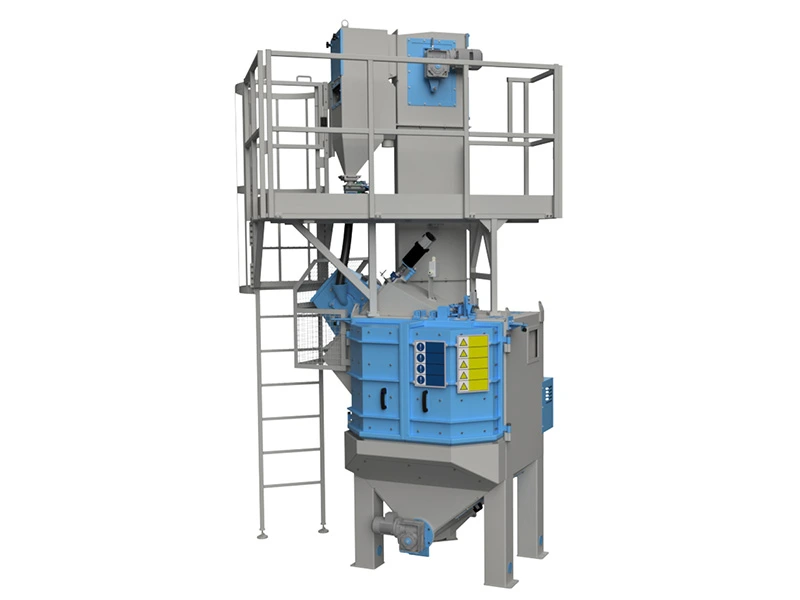

    TZS table-type rotary shot blasting machines

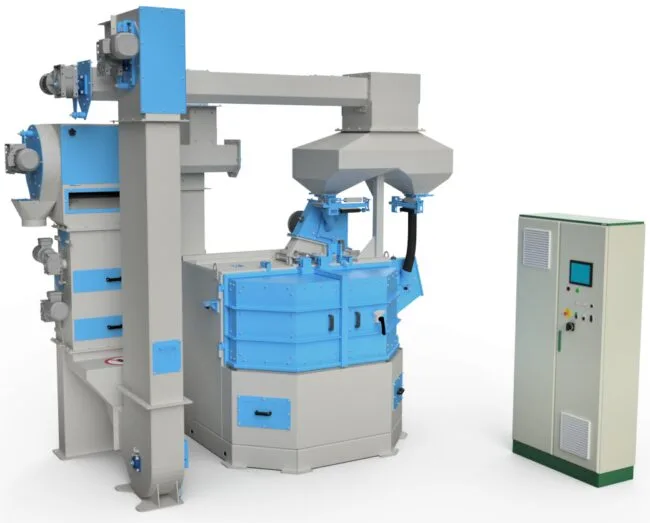

    TZS table rotor shot blasting machine

    Features and Equipment

    • Rotary table;
    • Turbine inverters are standard;
    • Integrated touch panel and PLC computer in Polish with the option to save settings;
    • No need to dig a foundation;
    • Abrasive separation and filtration systems are standard;
    • Remote diagnostics;
    • Service in Poland with a response time of up to 48 hours.

    Parameters of TZS table shot blasting machines



    TZS 1
    5.5/600    		 TZS 1
    5.5/12-5_N    		 TZS 2
    7.5/1600-1000    		 Maximum
    Max. workpiece rotation diameter (mm) 600 1200 1600 2000
    Max. Workpiece height (mm) 400 500 1000 1000
    Table load capacity (kg) 300 500 1000 1000
    Number of throwing wheels 1 2 3
    Turbine power (kW) 5.5 5.5/7.5 7.5/11 11
    Throw wheel speed (rpm) 2900 2900

    Reliable shot blasting machines with a rotary table

    The TZS is a table-top shot blasting machine equipped with a rotary table, on which a massive workpiece, such as a casting, can be placed, which is then blasted with a stream of abrasive material falling from above. Table-top shot blasting machines are primarily designed for blasting heavy, irregularly shaped workpieces that would be difficult to blast in other machines. They significantly simplify work, eliminating the need to hang or rotate workpieces during blasting.

    table shot blasting machine equipped with a rotating table,

    UMÓW BEZPŁATNĄ ROZMOWĘ Z DORADCĄ

    TZS table shot blasting machine with steps from Alumetal-Technik

    TZS Table Shot Blasting Machine Design

    The TZS table shot blasting machine is fully configurable. Its design can be precisely tailored to the customer’s needs. The blast chamber, like the rotary table, is made of abrasion-resistant steel – the material is fed from the front or by a crane from above. Rotating workpieces are cleaned using an obliquely directed abrasive stream.



    As with other machines from the Czech company Kovo Staněk, the table-top shot blasters also feature a unique, patented turbine design. Double bearings on the electric motor shaft significantly increase their service life, and standard inverters allow for smooth adjustment of the blast wheel speed.

    Standard equipment on the table-top shot blasters and other machines from this Czech manufacturer includes built-in filtration and abrasive separation systems, and a color touchscreen display with a Polish-language menu and a setting memory option.

    If you are interested in table-top shot blasters, please contact Alumetal-Technik’s technical advisors.
