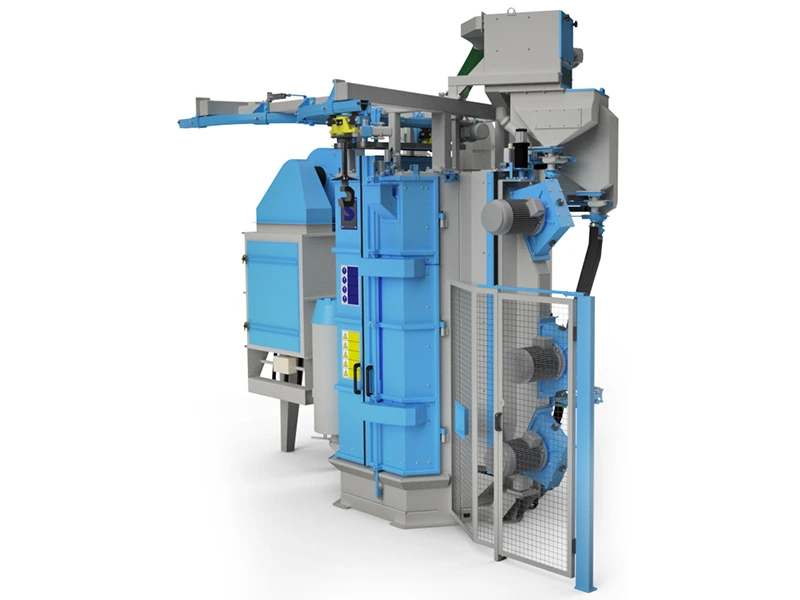

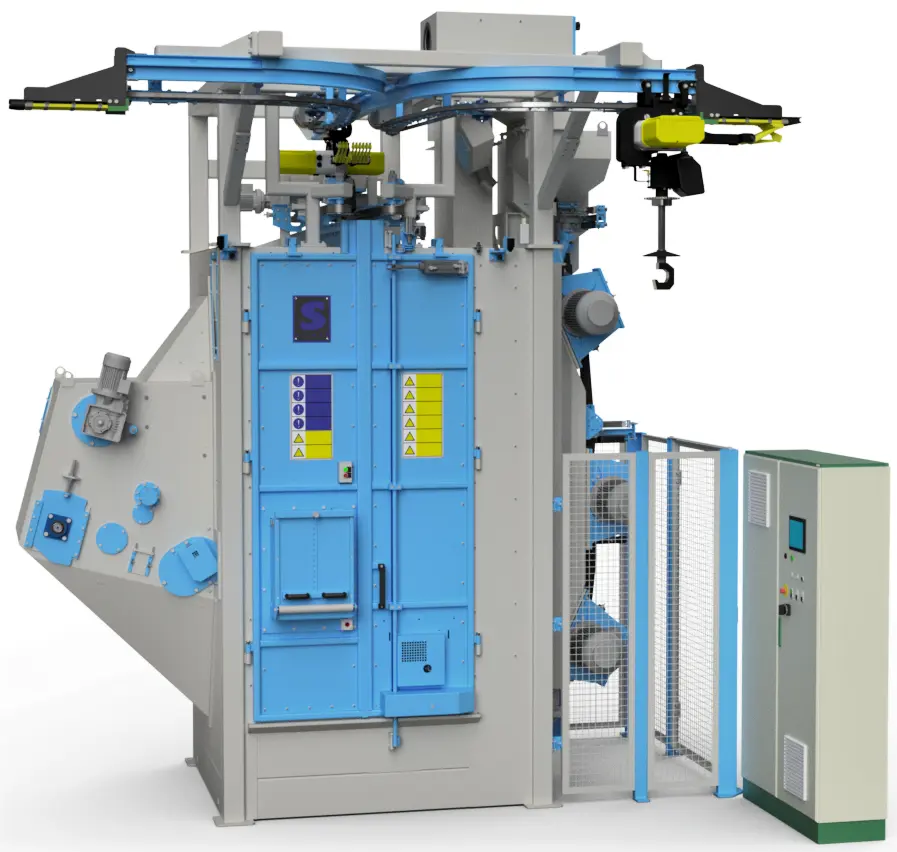

TZZS table-mounted rotor shot blasting machines with a movable turbine block
Parameters of the TZZS suspension-table shot blasting machine
| TZZS 2 5.5/12-17 |
TZZS 3 5.5/12-23 |
TZZS 3 7.5/16-23 |
TZZS 4 7.5/16-31 |
Maximum | |
| Max. Hanger rotation diameter (mm) | 1200 | 1600 | 3300 | ||
| Max. Hanger height (mm) | 1700 | 2300 | 3100 | 4500 | |
| Hook load capacity (kg) | 500/1000 | 1000/2000 | 2000 | ||
| Table load capacity (kg) | 500/1000 | 1000 | |||
| Number of throwing wheels | 2/3 | 3 | 3/4 | 4 | 6 |
| Turbine power (kW) | 5.5/7.5/11 | 11 | |||
| Throwing wheel speed (rpm) | 2900 | 2900 | |||
TZZS – universal shot blasting machines for industry
We want to develop the shot blasting method and introduce innovative solutions, materials, and machines. A key element in this process is our collaboration with the Czech manufacturer of rotating machinery, Kovo Staněk, s.r.o., which resulted in the introduction of the TZZS suspension-table shot blasting machine with a movable turbine block to Alumetal-Technik’s offering.
The TZZS shot blasting machine with a movable turbine block is a hybrid device combining the advantages of the TZNZ suspension shot blasting machine with a movable turbine block and the TZS table-top shot blasting machine. Due to its versatility, it is recommended primarily to companies with a diversified production profile.
Advantages of the TZZS Hanger Shot Blasting Machine
Like other Kovo Staněk equipment, the hook-and-bench shot blasting machines are equipped with patented, long-life turbines. Their innovative design lies in the proprietary design of the electric motor shaft flange, which is equipped with a special sealing ring and two bearings. This extends the lifespan and reduces maintenance costs for the blast wheel.
The hook-and-bench shot blasting machines are equipped with frequency inverters as standard, allowing for smooth turbine power adjustment. The machine is controlled via a touchscreen with a Polish interface. The PLC can be connected to the internet, allowing for remote diagnosis and repair of faults without involving service.
An efficient filtration system with a filter life of up to 18,000 hours and a built-in abrasive separator ensure cleanliness in the work area, which, when properly operated, contributes to low failure rates. Should any problems arise with the TZZS suspension-and-table shot blaster, our Łódź service center guarantees a response within 48 hours.
If you are interested in the TZZS hook shot blaster with a movable turbine block and rotating table, please contact Alumetal-Technik technical advisors, who will help you select the right equipment for your process.
